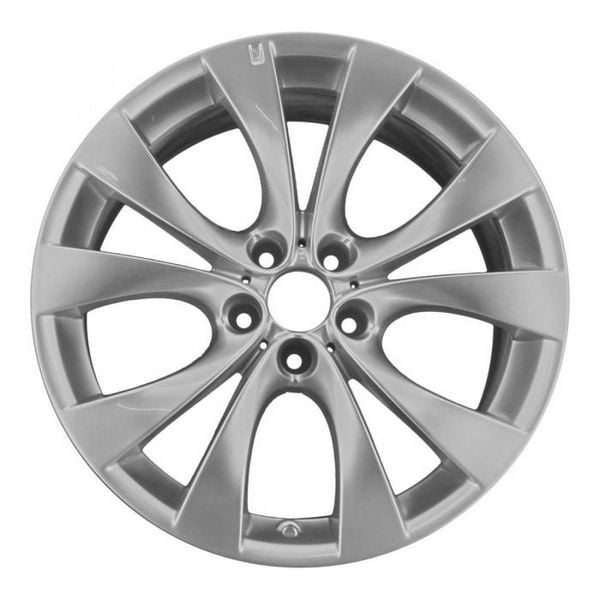

BMW wheel style 227

The BMW wheel style 227 is part of bmw’s lineup of original wheel styles.
The bmw Style 227 wheel is available in diameters of 20″ inches, with a bolt pattern of 5×120.
This rare rim is the original wheel style for the bmw series E70, however it might fit other models given the specifications match below with the replacement wheel.The style given to this wheel is best described as M V Spoke.

BMW wheel style 227

BMW wheel style 227 Technical Specifications & Parts

Wheel Style Nr Part Number Part Name Part Details
227 02 36 11 8 037 349 Light alloy rim 10JX20 ET:40 2
227 02 36 11 8 037 350 Light alloy rim 11JX20 ET:35 2
227 51 77 0 421 056 Retrofit kit, wheel arch extensions 20″ 1
227 03 36 13 6 781 151 Wheel bolt black M14X1,25 20
227 ? 36 13 6 890 324 Wheel bolt black M14X1,25 20
227 04 36 13 6 783 536 Hub cap with chrome edge BMW 4
227 05 36 12 1 178 869 Rubber valve L=48,5MM 4
227 06 36 14 1 095 389 Valve 4
227 07 36 12 1 120 779 Valve caps 4
227 08 36 11 2 228 660 M badge 4
227 05 36 14 6 792 830 Screw-in valve, RDC GRÜN 4
227 07 36 11 1 095 436 Valve caps RDC 4
BMW models for which the BMW wheel style 227 fits: E70

Will the BMW wheel style 227 fit on your BMW?

Bear in mind that it could be dangerous to run your bmw on tires or wheels they aren’t designed to fit. If you are unsure about your current wheel specifications, please check our bmw wheel fitment chart and guide

Insert your existing bmw wheel and tire specifications, and the sizes of the BMW wheel style 227, and the outcome will be shown on the diagram. The strut shown in the diagram below is for illustration purpose only.

YOUR EXISTING SETUP
YOUR NEW SETUP


Your Results

The diagram is only for show to help you visualize your tires and wheel fitmet of your new setup.


Tire Width - The width of your tire in millimeters. 195/55ZR15

Tire Profile - The ratio of tire wall width to tire width. 195/55ZR15

Tire Diameter - The diameter of your wheels in inches. 195/55ZR15

Inches Original Wheel New Wheel Difference
Diameter %
Circumference %
Sidewall %
Width %
Wheel Revolutions
