BMW wheel style 228

The BMW wheel style 228 is part of bmw’s lineup of original wheel styles.
The bmw Style 228 wheel is available in diameters of 19″ inches, with a bolt pattern of 5×120.
This is the original wheel style for the bmw series E90, E60, F01 and F07, however it might fit other models given the specifications match below with the replacement wheel.The style given to this wheel is best described as Individual V Spoke.

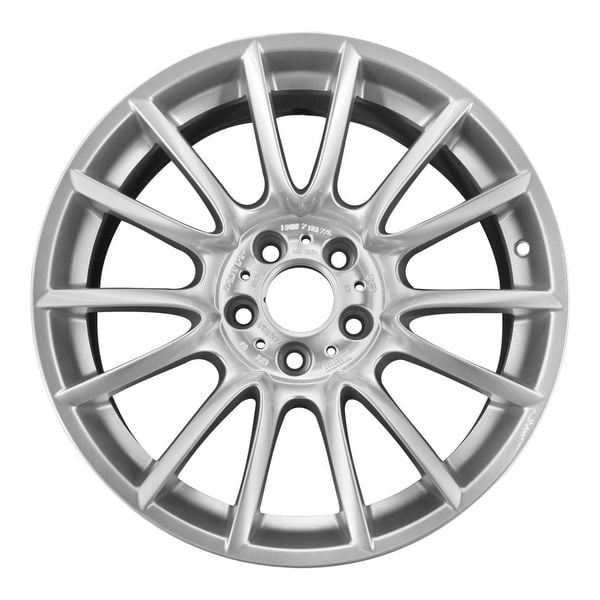

BMW wheel style 228

BMW wheel style 228 Technical Specifications & Parts

Wheel StyleNrPart NumberPart NamePart Details
2280236 11 8 037 351Light alloy rim8JX19 ET:372
2280236 11 8 037 352Light alloy rim9JX19 ET:392
2280336 13 6 781 150Wheel bolt blackM12X1,520
2280436 13 7 849 420Hub cap4
2280536 13 6 767 550BMW insignia stamped with adhesive filmD=64,5MM4
2280636 12 1 178 869Rubber valveL=48,5MM4
2280736 14 1 095 389Valve4
2280836 12 1 120 779Valve caps4
2280936 13 7 897 226Emblem “BMW Individual”4
2281036 13 2 294 421Hub cap puller1
2280236 11 8 037 353Light alloy rim81/2JX19 ET:182
2280236 11 8 037 354Light alloy rim91/2JX19 ET:322
2280236 11 7 841 224Light alloy rim81/2JX19 ET:252
2280236 11 7 841 225Light alloy rim91/2JX19 ET:392
2280336 13 6 781 151Wheel bolt blackM14X1,2520
228?36 13 6 890 324Wheel bolt blackM14X1,2520
2280436 13 7 849 422Hub cap, silver4
2280636 14 6 792 829Screw-in valve, RDC4
2280836 11 1 095 436Valve caps RDC4
BMW models for which the BMW wheel style 228 fits: E90+ E60+ F07 F01+

Will the BMW wheel style 228 fit on your BMW?

Bear in mind that it could be dangerous to run your BMW on tires or wheels they aren’t designed to fit. If you are unsure about your current wheel specifications, please check our BMW wheel fitment chart and guide



Insert your existing BMW wheel and tire dimensions, and the sizes of the BMW wheel style 228, and the outcome will be shown on the diagram. The strut shown in the diagram below is for illustration purpose only.

YOUR EXISTING SETUP
Existing Tyre
Existing Wheel

Above values are only examples! If unsure of your current wheel size? Check here!

YOUR NEW SETUP
Existing Tyre
Existing Wheel

Above values are only examples! Change values to view fittment.

YOUR RESULTS

are automatically applied below


The diagram is only for show to help you visualize your tires and wheel fitment of your new setup.


Tire Width - The width of your tire in millimeters. 195/55ZR15

Tire Profile - The ratio of tire wall width to tire width. 195/55ZR15

Tire Diameter - The diameter of your wheels in inches. 195/55ZR15

Offset - the distance from the center of the wheel to the mounting face in mm. ET20

Rim Width - The width of your rims in inches. 7.5JX17

InchesOriginal WheelNew WheelDifference
Diameter%
Circumference%
Sidewall%
Width%
Wheel Revolutions

What is the recommended tire pressure for the BMW wheel style 228?

The tire pressure for the BMW wheel style 228 will depend on your BMW model. Most BMW models like the BMW 3 Series and the BMW 5 Series, have a recommended tire pressure of 32 PSI (2.2 Bar). However, you should always double-check this for your specific BMW model. You can find out the recommended tire pressure for your BMW, by checking the the sticker on the inside edge of the driver’s door or, check your owner’s manual if you still have the same type of tires that came with the vehicle.
