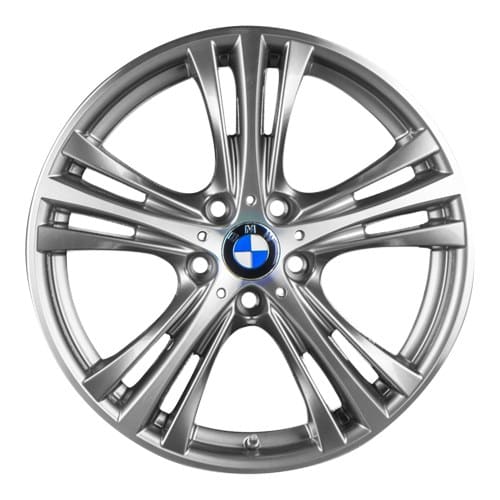

The BMW wheel style 407 is part of bmw’s lineup of original wheel styles.
The bmw Style 407 wheel is available in diameters of 19″ inches, with a bolt pattern of 5×120.
This is the original wheel style for the bmw series F30 and F36, however it might fit other models given the specifications match below with the replacement wheel.The style given to this wheel is best described as Star Spoke.
BMW wheel style 407 Technical Specifications & Parts
| Wheel Style | Nr | Part Number | Part Name | Part Details | |
| 407 | 07 | 36 14 1 095 389 | Valve | 4 | |
| 407 | 08 | 36 14 6 867 031 | Valve insert RDCi | 4 | |
| 407 | 09 | 36 12 1 120 779 | Valve caps | 4 | |
| 407 | 10 | 36 14 6 867 030 | Valve cap RDCi | 4 | |
| 407 | 11 | 36 10 6 867 147 | Repair kit, screw-type valve RDCi | 4 | |
| 407 | ? | 36 10 6 876 673 | Repair kit, screw-type valve RDCi | 4 | |
| 407 | 02 | 36 11 6 857 566 | Light alloy rim Ferricgrey | 8,5JX19 ET:47 | 2 |
| 407 | 02 | 36 11 6 883 015 | Disc wheel, light alloy, Orbitgrey | 8,5JX19 ET:47 | 2 |
| 407 | 02 | 36 11 6 883 014 | Disc wheel, light alloy, Orbitgrey | 8JX19 ET:36 | 2 |
| 407 | 02 | 36 11 6 857 565 | Light alloy rim Ferricgrey | 8JX19 ET:36 | 2 |
| 407 | 03 | 36 13 6 781 151 | Wheel bolt black | M14X1,25 | 20 |
| 407 | ? | 36 13 6 890 324 | Wheel bolt black | M14X1,25 | 20 |
| 407 | 04 | 36 13 6 783 536 | Hub cap with chrome edge | BMW | 4 |
| 407 | 05 | 36 12 1 116 326 | Rubber valve | L=42,5MM | 4 |
| 407 | 06 | 36 10 6 856 209 | Wheel electr. module RDCi w/ screw valve | 4 | |
| 407 | ? | 36 10 6 881 890 | Wheel electr. module RDCi w/ screw valve | 4 | |
| 407 | 04 | 36 13 6 883 558 | Hub cap with blue ring | BMW | 4 |
| 407 | 05 | 36 14 6 792 829 | Screw-in valve, RDC | 4 | |
| 407 | 07 | 36 11 1 095 436 | Valve caps RDC | 4 |
BMW models for which the BMW wheel style 407 fits: F30+ F36
Color Code: Ferric Grey and Orbit Grey
Will the BMW wheel style 407 fit on your BMW?
Bear in mind that it could be dangerous to run your BMW on tires or wheels they aren’t designed to fit. If you are unsure about your current wheel specifications, please check our BMW wheel fitment chart and guide
Insert your existing BMW wheel and tire specifications, and the sizes of the BMW wheel style 407, and the outcome will be shown on the diagram. The strut shown in the diagram below is for illustration purpose only.
YOUR EXISTING SETUP
Above values are only examples! If unsure of your current wheel size? Check here!
YOUR NEW SETUP
Above values are only examples! Change values to view fittment.
YOUR RESULTS
The diagram is only for show to help you visualize your tires and wheel fitment of your new setup.
Tire Width - The width of your tire in millimeters. 195/55ZR15
Tire Profile - The ratio of tire wall width to tire width. 195/55ZR15
Tire Diameter - The diameter of your wheels in inches. 195/55ZR15
Offset - the distance from the center of the wheel to the mounting face in mm. ET20
Rim Width - The width of your rims in inches. 7.5JX17
| Inches | Original Wheel | New Wheel | Difference |
|---|---|---|---|
| Diameter | % | ||
| Circumference | % | ||
| Sidewall | % | ||
| Width | % | ||
| Wheel Revolutions |
