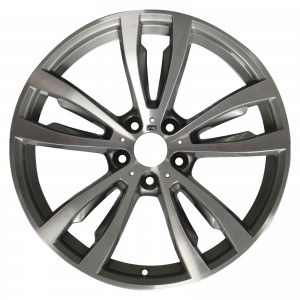

BMW wheel style 469

The bmw Style wheel 469 is available in diameters of 20 inches and are staggerd wheels. This wheel is the original wheel style for the bmw series X5 F15, however it might fit other models given the specifications match below with the replacement wheel sizes.

BMW wheel style 469

BMW wheel style 469 Technical Specifications & Parts

Wheel StyleNrPart NumberPart NamePart Details
4690236 11 8 064 895Disc wheel light alloy jet bl.sol.paint11JX20 ET:372
46951 77 7 171 002Clip10
46951 77 7 343 143Cover, wheel arch, rear left20″ SCHWARZ1
46951 77 7 343 144Cover, wheel arch, rear right20″ SCHWARZ1
46907 14 7 293 278Expanding rivet, black12
4690236 11 8 064 894Disc wheel light alloy jet bl.sol.paint10JX20 ET:402
46951 77 7 303 391Trim, wheel arch, front left20″ SCHWARZ1
46951 77 7 303 392Trim, wheel arch, front right20″ SCHWARZ1
46951 71 7 002 953Expanding rivet16
46907 14 9 213 164Hex BoltTS5X20 SW8 D=226
469?36 10 6 881 890Wheel electr. module RDCi w/ screw valve4
4690836 14 1 095 389Valve4
4690936 14 6 867 031Valve insert RDCi4
4691036 12 1 120 779Valve caps4
4691136 14 6 867 030Valve cap RDCi4
4691236 10 6 867 147Repair kit, screw-type valve RDCi4
469?36 10 6 876 673Repair kit, screw-type valve RDCi4
46951 77 7 378 583Trim piece rear left wheel well, primed20″ EXCELLENCE1
46951 77 7 378 584Cover, wheel arch, primed, rear right20″ EXCELLENCE1
46951 77 7 378 581Trim, wheel arch, primed, front left20″ EXCELLENCE1
46951 77 7 378 582Trim, wheel arch, primed, front right20″ EXCELLENCE1
4690336 13 6 781 151Wheel bolt blackM14X1,2520
469?36 13 6 890 324Wheel bolt blackM14X1,2520
4690436 13 6 783 536Hub cap with chrome edgeBMW4
4690536 11 2 228 660M badge4
4690636 12 1 116 326Rubber valveL=42,5MM4
4690736 10 6 856 209Wheel electr. module RDCi w/ screw valve4
4690236 11 7 846 791Light alloy rim Ferricgrey11JX20 ET:372
4690236 11 7 846 790Light alloy rim Ferricgrey10JX20 ET:402
4690436 13 6 883 558Hub cap with blue ringBMW4
BMW models for which the BMW wheel style 469 fits: F15
Color Code: Jet Black sol paint

Will the BMW wheel style 469 fit on your BMW?

Bear in mind that it could be dangerous to run your BMW on tires or wheels they aren’t designed to fit. If you are unsure about your current wheel specifications, please check our BMW wheel fitment chart and guide



Insert your existing BMW wheel and tire dimensions, and the sizes of the BMW wheel style 469, and the outcome will be shown on the diagram. The strut shown in the diagram below is for illustration purpose only.

YOUR EXISTING SETUP
Existing Tyre
Existing Wheel

Above values are only examples! If unsure of your current wheel size? Check here!

YOUR NEW SETUP
Existing Tyre
Existing Wheel

Above values are only examples! Change values to view fittment.

YOUR RESULTS

are automatically applied below


The diagram is only for show to help you visualize your tires and wheel fitment of your new setup.


Tire Width - The width of your tire in millimeters. 195/55ZR15

Tire Profile - The ratio of tire wall width to tire width. 195/55ZR15

Tire Diameter - The diameter of your wheels in inches. 195/55ZR15

Offset - the distance from the center of the wheel to the mounting face in mm. ET20

Rim Width - The width of your rims in inches. 7.5JX17

InchesOriginal WheelNew WheelDifference
Diameter%
Circumference%
Sidewall%
Width%
Wheel Revolutions

What is the recommended tire pressure for the BMW wheel style 469?

The tire pressure for the BMW wheel style 469 will depend on your BMW model. Most BMW models like the BMW X5 Series and the , have a recommended tire pressure of 32 PSI (2.2 Bar). However, you should always double-check this for your specific BMW model. You can find out the recommended tire pressure for your BMW, by checking the the sticker on the inside edge of the driver’s door or, check your owner’s manual if you still have the same type of tires that came with the vehicle.
