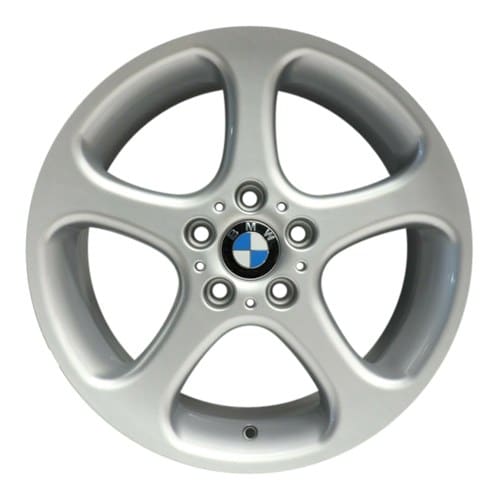

BMW wheel style 69

The BMW wheel style 69 is part of bmw’s lineup of original wheel styles.
The bmw Style 69 wheel is available in diameters of 18″ inches, with a bolt pattern of 5×120.
This is the original wheel style for the bmw series E38, E39 and E53, however it might fit other models given the specifications match below with the replacement wheel.The style given to this wheel is best described as Star Spoke.
Notes: *Brillant-Line

BMW wheel style 69

BMW wheel style 69 Technical Specifications & Parts

Wheel Style Nr Part Number Part Name Part Details
69 09 36 11 1 095 436 Valve caps RDC 4
69 03 36 11 6 752 027 Light alloy rim 81/2JX18 ET:48 4
69 03 36 11 1 096 227 Light alloy rim “Brilliantline” 81/2JX18 ET:48 4
69 04 36 13 6 756 298 Wheel bolt M14X1,5/SW19MM 20
69 04 36 13 6 781 153 Wheel bolt M14X1,5/SW17MM 20
69 05 36 13 6 783 536 Hub cap with chrome edge BMW 4
69 06 36 13 6 767 547 BMW insignia stamped/painted 4
69 07 36 12 1 178 869 Rubber valve L=48,5MM 4
69 07 36 14 6 792 830 Screw-in valve, RDC GRÜN 4
69 08 36 14 1 095 389 Valve 4
69 09 36 12 1 120 779 Valve caps 4
BMW models for which the BMW wheel style 69 fits: E39 E38 E53
More images

Will the BMW wheel style 69 fit on your BMW?

Bear in mind that it could be dangerous to run your bmw on tires or wheels they aren’t designed to fit. If you are unsure about your current wheel specifications, please check our bmw wheel fitment chart and guide

Insert your existing bmw wheel and tire specifications, and the sizes of the BMW wheel style 69, and the outcome will be shown on the diagram. The strut shown in the diagram below is for illustration purpose only.

YOUR EXISTING SETUP
YOUR NEW SETUP


Your Results

The diagram is only for show to help you visualize your tires and wheel fitmet of your new setup.


Tire Width - The width of your tire in millimeters. 195/55ZR15

Tire Profile - The ratio of tire wall width to tire width. 195/55ZR15

Tire Diameter - The diameter of your wheels in inches. 195/55ZR15

Inches Original Wheel New Wheel Difference
Diameter %
Circumference %
Sidewall %
Width %
Wheel Revolutions
