BMW wheel style 706

The bmw Style wheel 706 is available in diameters of 20 inches and are staggerd wheels. This wheel is the original wheel style for the bmw series 5′ F90 M5, however it might fit other models given the specifications match below with the replacement wheel sizes.

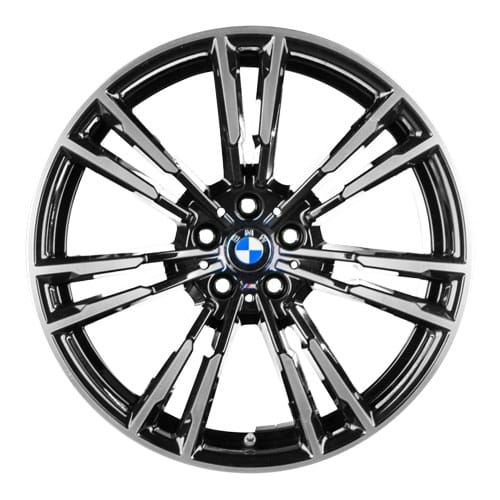

BMW wheel style 706

BMW wheel style 706 Technical Specifications & Parts

Wheel Style Nr Part Number Part Name Part Details
706 02 36 11 8 073 977 Disc wheel light alloy jet bl.sol.paint 9,5JX20 ET28 2
706 02 36 11 8 073 979 Disc wheel light alloy jet bl.sol.paint 10,5JX20 ET28 2
706 02 36 11 7 857 077 Disc wheel light alloy jet bl.sol.paint 9,5JX20 ET28 2
706 02 36 11 7 857 078 Disc wheel light alloy jet bl.sol.paint 10,5JX20 ET28 2
706 03 36 13 6 781 151 Wheel bolt black M14X1,25 20
706 ? 36 13 6 890 324 Wheel bolt black M14X1,25 20
706 04 36 13 6 850 834 Hub cap with chrome edge BMW 4
706 05 36 11 2 228 660 M badge 4
706 06 36 12 1 116 326 Rubber valve L=42,5MM 4
706 07 36 14 1 095 389 Valve 4
706 08 36 12 1 120 779 Valve caps 4
706 09 36 10 6 876 957 Wheel electr. module RDCi w/ screw valve 433MHZ 4
706 ? 36 10 6 887 147 Wheel electr. module RDCi w/ screw valve 433MHZ 4
706 09 36 10 6 876 956 Wheel electr. module RDCi w/ screw valve 315MHZ 4
706 ? 36 10 6 887 146 Wheel electr. module RDCi w/ screw valve 315MHZ 4
706 10 36 10 6 874 842 Repair kit, screw-type valve RDCi 4
706 11 36 14 6 872 777 Valve insert RDCi 4
706 12 36 14 6 872 776 Valve cap RDCi 4
BMW models for which the BMW wheel style 706 fits: F90

Will the BMW wheel style 706 fit on your BMW?

Bear in mind that it could be dangerous to run your bmw on tires or wheels they aren’t designed to fit. If you are unsure about your current wheel specifications, please check our bmw wheel fitment chart and guide

Insert your existing bmw wheel and tire specifications, and the sizes of the BMW wheel style 706, and the outcome will be shown on the diagram. The strut shown in the diagram below is for illustration purpose only.

YOUR EXISTING SETUP
YOUR NEW SETUP


Your Results

The diagram is only for show to help you visualize your tires and wheel fitmet of your new setup.


Tire Width - The width of your tire in millimeters. 195/55ZR15

Tire Profile - The ratio of tire wall width to tire width. 195/55ZR15

Tire Diameter - The diameter of your wheels in inches. 195/55ZR15

Inches Original Wheel New Wheel Difference
Diameter %
Circumference %
Sidewall %
Width %
Wheel Revolutions
