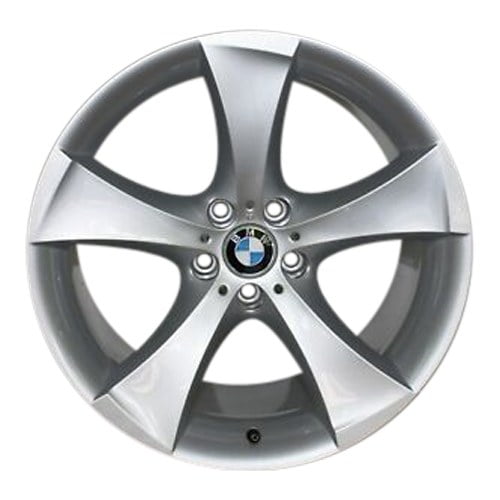

The BMW wheel style 259 is part of bmw’s lineup of original wheel styles.
The bmw Style 259 wheel is available in diameters of 20″ inches, with a bolt pattern of 5×120.
This rare rim is the original wheel style for the bmw series E71, however it might fit other models given the specifications match below with the replacement wheel.The style given to this wheel is best described as Star Spoke.
BMW wheel style 259 Technical Specifications & Parts
|Wheel Style||Nr||Part Number||Part Name||Part Details|
|259||02||36 11 6 778 588||Light alloy rim||10JX20 ET:40||2|
|259||02||36 11 6 778 589||Light alloy rim||11JX20 ET:37||2|
|259||03||36 13 6 781 151||Wheel bolt black||M14X1,25||20|
|259||?||36 13 6 890 324||Wheel bolt black||M14X1,25||20|
|259||04||36 13 6 783 536||Hub cap with chrome edge||BMW||4|
|259||05||36 12 1 178 869||Rubber valve||L=48,5MM||4|
|259||06||36 14 1 095 389||Valve||4|
|259||07||36 12 1 120 779||Valve caps||4|
|259||05||36 14 6 792 830||Screw-in valve, RDC||GRÜN||4|
|259||07||36 11 1 095 436||Valve caps RDC||4|
BMW models for which the BMW wheel style 259 fits: E71
Will the BMW wheel style 259 fit on your BMW?
Bear in mind that it could be dangerous to run your BMW on tires or wheels they aren’t designed to fit. If you are unsure about your current wheel specifications, please check our BMW wheel fitment chart and guide
Insert your existing BMW wheel and tire specifications, and the sizes of the BMW wheel style 259, and the outcome will be shown on the diagram. The strut shown in the diagram below is for illustration purpose only.
YOUR EXISTING SETUP
Above values are only examples! If unsure of your current wheel size? Check here!
YOUR NEW SETUP
Above values are only examples! Change values to view fittment.
The diagram is only for show to help you visualize your tires and wheel fitment of your new setup.
Tire Width - The width of your tire in millimeters. 195/55ZR15
Tire Profile - The ratio of tire wall width to tire width. 195/55ZR15
Tire Diameter - The diameter of your wheels in inches. 195/55ZR15
Offset - the distance from the center of the wheel to the mounting face in mm. ET20
Rim Width - The width of your rims in inches. 7.5JX17
|Inches||Original Wheel||New Wheel||Difference|
