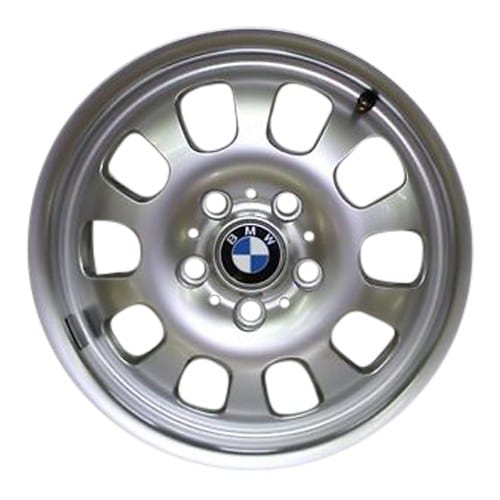

BMW wheel style 46

The BMW wheel style 46 is part of bmw’s lineup of original wheel styles.
The bmw Style 46 wheel is available in diameters of 15″ and 16″ inches, with a bolt pattern of 5×120.
This rare rim is the original wheel style for the bmw series E46, however it might fit other models given the specifications match below with the replacement wheel.The style given to this wheel is best described as Ellipsoid-Styling.

BMW wheel style 46

BMW wheel style 46 Technical Specifications & Parts

Wheel Style Nr Part Number Part Name Part Details
46 03 36 11 1 094 499 Alloy rim, forged 61/2JX15 ET:42 4
46 03 36 11 1 094 502 Light alloy rim 7JX16 ET:47 4
46 04 36 13 6 781 150 Wheel bolt black M12X1,5 X
46 05 36 13 6 783 536 Hub cap with chrome edge BMW 4
46 06 36 13 6 767 547 BMW insignia stamped/painted 4
46 07 36 12 1 116 326 Rubber valve L=42,5MM 4
46 08 36 14 1 095 389 Valve 4
46 09 36 12 1 120 779 Valve caps 4
46 07 36 14 6 792 829 Screw-in valve, RDC 4
46 09 36 11 1 095 436 Valve caps RDC 4

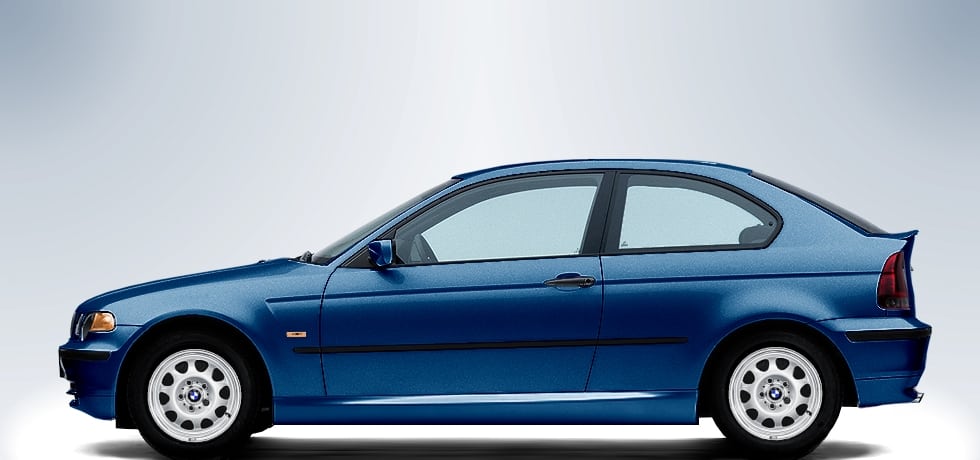

BMW models for which the BMW wheel style 46 fits: E46
