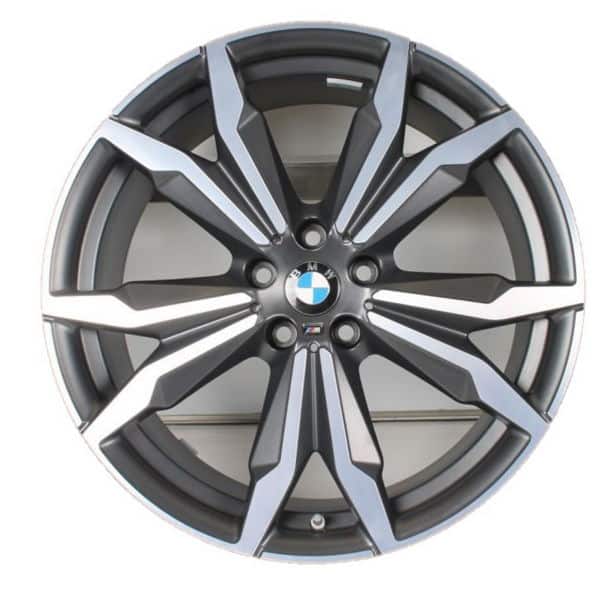

BMW wheel style 716

The bmw Style wheel 716 is available in diameters of 20 inches. This wheel is the original wheel style for the bmw series X1 F48, however it might fit other models given the specifications match below with the replacement wheel sizes.

BMW wheel style 716

BMW wheel style 716 Technical Specifications & Parts

Wheel StyleNrPart NumberPart NamePart Details
7160236 10 8 008 622Disc wheel light alloy jet bl.sol.paint8JX20 ET:504
7160336 13 6 781 151Wheel bolt blackM14X1,2520
716?36 13 6 890 324Wheel bolt blackM14X1,2520
7160436 13 6 850 834Hub cap with chrome edgeBMW4
7160536 12 1 116 326Rubber valveL=42,5MM4
7160636 14 1 095 389Valve4
7160736 12 1 120 779Valve caps4
7160836 10 6 881 890Wheel electr. module RDCi w/ screw valve4
7160936 10 6 876 673Repair kit, screw-type valve RDCi4
7161036 14 6 867 031Valve insert RDCi4
7161136 14 6 867 030Valve cap RDCi4
7161236 11 2 228 660M badge4
BMW models for which the BMW wheel style 716 fits: F48
Color Code: Jet Black sol paint and Cerium Grey

Will the BMW wheel style 716 fit on your BMW?

Bear in mind that it could be dangerous to run your BMW on tires or wheels they aren’t designed to fit. If you are unsure about your current wheel specifications, please check our BMW wheel fitment chart and guide



Insert your existing BMW wheel and tire dimensions, and the sizes of the BMW wheel style 716, and the outcome will be shown on the diagram. The strut shown in the diagram below is for illustration purpose only.

YOUR EXISTING SETUP
Existing Tyre
Existing Wheel

Above values are only examples! If unsure of your current wheel size? Check here!

YOUR NEW SETUP
Existing Tyre
Existing Wheel

Above values are only examples! Change values to view fittment.

YOUR RESULTS

are automatically applied below


The diagram is only for show to help you visualize your tires and wheel fitment of your new setup.


Tire Width - The width of your tire in millimeters. 195/55ZR15

Tire Profile - The ratio of tire wall width to tire width. 195/55ZR15

Tire Diameter - The diameter of your wheels in inches. 195/55ZR15

Offset - the distance from the center of the wheel to the mounting face in mm. ET20

Rim Width - The width of your rims in inches. 7.5JX17

InchesOriginal WheelNew WheelDifference
Diameter%
Circumference%
Sidewall%
Width%
Wheel Revolutions

What is the recommended tire pressure for the BMW wheel style 716?

The tire pressure for the BMW wheel style 716 will depend on your BMW model. Most BMW models like the BMW X1 Series and the , have a recommended tire pressure of 32 PSI (2.2 Bar). However, you should always double-check this for your specific BMW model. You can find out the recommended tire pressure for your BMW, by checking the the sticker on the inside edge of the driver’s door or, check your owner’s manual if you still have the same type of tires that came with the vehicle.
