BMW wheel style 736

The bmw Style wheel 736 is available in diameters of 20 inches and are staggerd wheels. This wheel is the original wheel style for the bmw series X5 G05, however it might fit other models given the specifications match below with the replacement wheel sizes.

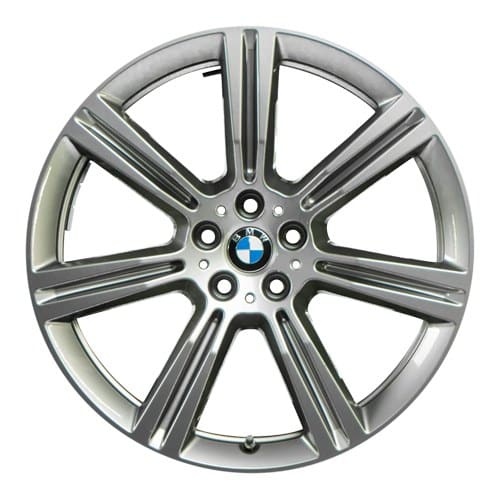

BMW wheel style 736

BMW wheel style 736 Technical Specifications & Parts

Wheel Style Nr Part Number Part Name Part Details
736 09 36 10 6 874 842 Repair kit, screw-type valve RDCi 4
736 10 36 14 6 872 777 Valve insert RDCi 4
736 11 36 14 6 872 776 Valve cap RDCi 4
736 02 36 11 6 883 753 Light alloy rim Ferricgrey 9JX20 ET:35 4
736 02 36 11 6 883 754 Light alloy rim Ferricgrey 10,5JX20 ET:40 2
736 03 36 13 6 795 153 Wheel bolt black M14X1,25 20
736 04 36 13 6 850 834 Hub cap with chrome edge BMW 4
736 05 36 12 1 116 326 Rubber valve L=42,5MM 4
736 06 36 14 1 095 389 Valve 4
736 07 36 12 1 120 779 Valve caps 4
736 08 36 10 6 887 147 Wheel electr. module RDCi w/ screw valve 433MHZ 4
736 08 36 10 6 887 146 Wheel electr. module RDCi w/ screw valve 315MHZ 4
BMW models for which the BMW wheel style 736 fits: G05

Will the BMW wheel style 736 fit on your BMW?

Bear in mind that it could be dangerous to run your bmw on tires or wheels they aren’t designed to fit. If you are unsure about your current wheel specifications, please check our bmw wheel fitment chart and guide

Insert your existing bmw wheel and tire specifications, and the sizes of the BMW wheel style 736, and the outcome will be shown on the diagram. The strut shown in the diagram below is for illustration purpose only.

YOUR EXISTING SETUP
YOUR NEW SETUP


Your Results

The diagram is only for show to help you visualize your tires and wheel fitmet of your new setup.


Tire Width - The width of your tire in millimeters. 195/55ZR15

Tire Profile - The ratio of tire wall width to tire width. 195/55ZR15

Tire Diameter - The diameter of your wheels in inches. 195/55ZR15

Inches Original Wheel New Wheel Difference
Diameter %
Circumference %
Sidewall %
Width %
Wheel Revolutions
